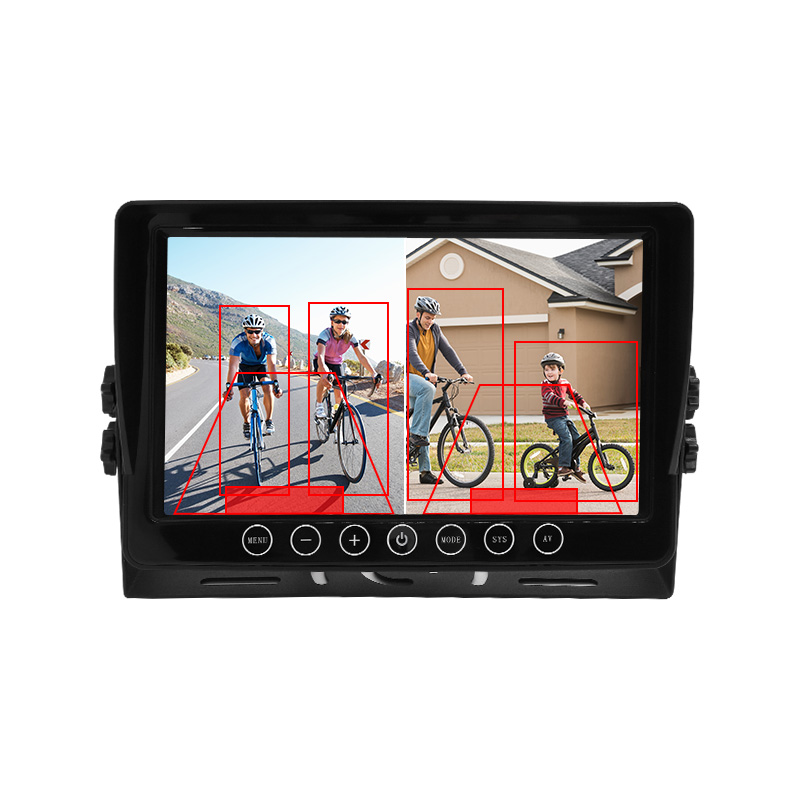

9 Inch Touchscreen Button 4CH BSD/AI With Recording Function

9 Inch Touchscreen Button 4CH BSD/AI With Recording Function-4

9 Inch Touchscreen Button 4CH BSD/AI With Recording Function-3

YWX-928B multifunctional monitor is designed for heavy-duty vehicles, addressing blind spot issues and enhancing safety. It features a multi-language interface, remote control, and built-in speakers. It supports video and audio from four cameras, with an image flipping function for different views. The wide voltage design ensures reliable performance in various conditions, making it an ideal solution for vehicle safety.

Multiple Menu Languages Available: English,Arabic ,Spaninsh, Default English. Customization Available.
With Remote Control Function
Display With Built-In Speaker, Volume Adjustable
Supports Video Input From 4 Cameras At The Same Time
Support Ahd1080/720p Signal Camera
Recording And Playback Function
Support Four-Channel Single-Channel Line Control Triggering
With 9-35v Wide Voltage Of Power Supply

Technical Specifications

Model	YWX-928B BSD
Screen Size	9″
Ratio	16:9
Resolution	1024（W）* R.G.B * 600(H)
TV System	PAL/NTSC
Brightness	600cd/㎡
Contrast	500:1
Viewing Angle	U/D:85°/85°,R/L:85°/85°
Image Settings	Dection Area, Identification, Brightness、Parking Monitoring
Video Format	AHD
Mirror Flip	Non-mirror, mirror
Video Channel	Four channel video input
Reversing Delayed	0-9s
Line Control Channel Trigger	Supports four single-channel triggers
Power Supply	9-35V，DC/<9W
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
