10.1 Inch 4CH BSD/AI With Recording Function

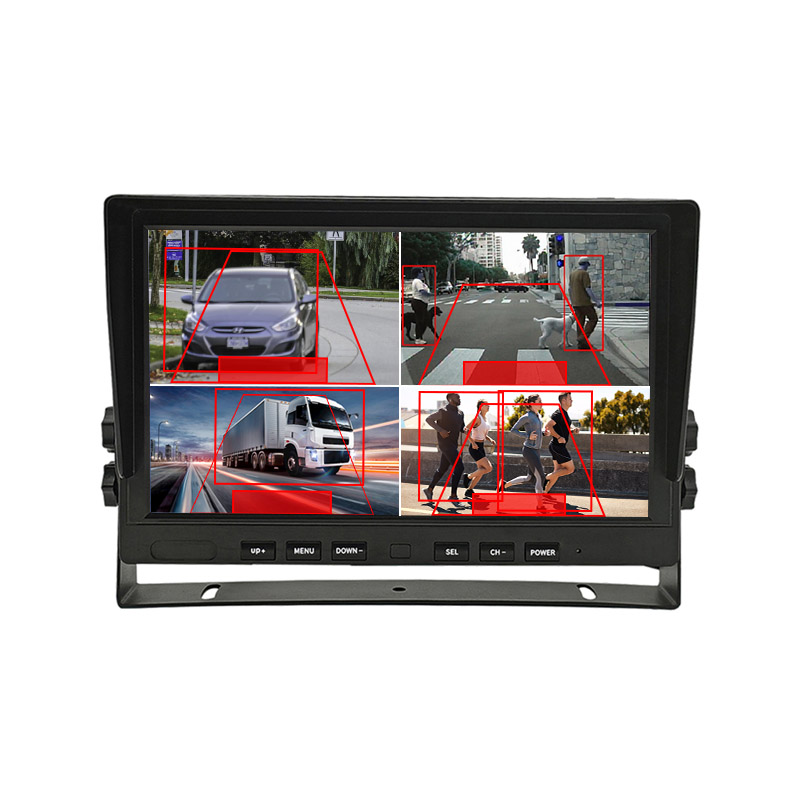

YWX-1016 BSD Multifunctional Monitor Is Designed For Heavy-Duty Vehicles To Address Blind Spot Challenges. It Features A Multi-Language Interface, Remote Control, And Built-In Speakers For Easy Use And Clear Audio. The Monitor Supports Video And Audio From Four Cameras, With An Image Flipping Function For Different Perspectives. Its Wide Voltage Design Ensures Reliable Performance In Various Conditions, Making It A Perfect Solution For Improving Vehicle Safety.
- Multiple Menu Languages Available: English,Arabic ,Spaninsh, Default English. Customization Available.
- With Remote Control Function
- Display With Built-In Speaker, Volume Adjustable
- Supports Video Input From 4 Cameras At The Same Time
- Support Ahd1080/720p Signal Camera
- Recording And Playback Function
- Support Four-Channel Single-Channel Line Control Triggering
- With 9-35v Wide Voltage Of Power Supply
Technical Specifications
| Model | YWX-1016 BSD |
| Screen Size | 10.1″ |
| Ratio | 16:9 |
| Resolution | 1024（W）* R.G.B * 600(H) |
| TV System | PAL/NTSC |
| Brightness | 600cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | U/D:85°/85°,R/L:85°/85° |
| Image Settings | Dection Area, Identification, Brightness、Parking Monitoring |
| Video Format | AHD |
| Mirror Flip | Non-mirror, mirror |
| Video Channel | Four channel video input |
| Reversing Delayed | 0-9s |
| Line Control Channel Trigger | Supports four single-channel triggers |
| Power Supply | 9-35V，DC/<9W |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
